2006 Chevy Colorado Brake Controller Installation

Please visit my general install page for overall instructions

"Standard" Wire colors to the controller (Tekonsha and others):

    • Tekonsha and others
    • Function
    • Black
    • Battery Positive to controller
    • White
    • Negative Ground for Controller
    • Blue
    • Brake feed from controller to Trailer plug at back of truck
    • Red
    • tap into truck Brake light switch signal to tell controller to apply brakes

Remember, the above colors are just a GUIDE. your colors may be different, read the instructions!

TRAILER LIGHTS: Tail Lights will need a standard tail light 5 wire to 4 wire converter if not already installed from the factory. These trucks have separate brake lights and turn signals, so the converter is needed to convert to standard 4 wire set (brake and turn are the same bulb)

Tap into this wire with a side tap (scotch lock) for the brake light feed (red wire)

Above we used standard Brake wire (in red jacket). This has two wires inside the red jacket, one for 12 volt power on one for the brake feed. We used the black wire for battery feed, both to the rear of the truck, and to power the controller under the dash. The other wire (in this case) is is white, we used that for the brake wire. Wire comes from rear of truck, the black wire is cut and connected to the circuit breaker, then passes through the fire wall.

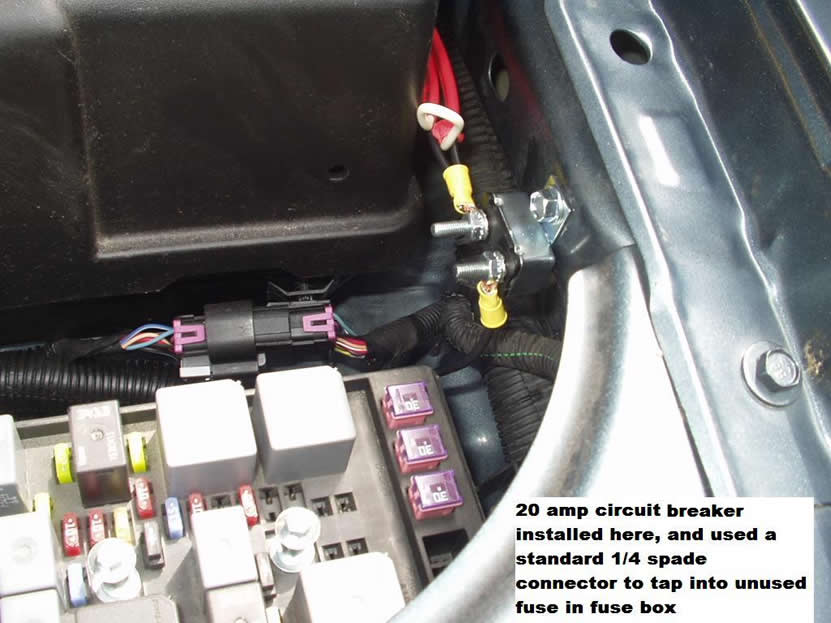

Circuit breaker is mounted to fender. Used a standard 1/4" spade and slipped it onto on of the un-used fuse spots in the fuse block - the red jacketed wire: black is 12 volt supply, the white is being used for the brake wire. So, the wire comes from the brake controller under the dash, over to the relay on the fender. The wire wire (brake ) is ran directly down to the rear of the truck, while the black wire is connected to the 12 volts supply, and is connected to both the controller and the plug on back.
