How to hook up your brake controller in a Nissan truck.

"Standard" Wire colors to the controller:

    • Tekonsha and others
    • Function
    • Black
    • Battery Positive to controller
    • White
    • Negative Ground for Controller
    • Blue
    • Brake feed from controller to Trailer plug at back of truck
    • Red
    • tap into truck Brake light switch signal to tell controller to apply brakes

Remember, the above colors are just a GUIDE. your colors may be different, read the instructions!

Click Here To see the installation instructions from Tekonsha

Below is a example in a Titan, other may be similair:

Installing a brake control unit isn't very difficult. This task is made even easier if your tow vehicle is a late model and comes with a 7 Way Connector as part of the towing package. Nissan Titans with the "Big Tow" Package will have the wire connectors in place.

In this case, installation is as simple as mounting the brake controller in a convenient, easy to reach place, usually under the dash, just above your right leg and connecting the wires from the brake control to the wiring harness and then plugging the harness into the harness located under the dash.

On Nissan Titan trucks, with the tow package, the factory provided a plug under the dash to connect the brake controller. On the trucks I have done, it is a plug, located up in the dash, just above park brake, up under the dash. You must have the factory plug harness to plug in (I sell these, if you need one, hint, hint)

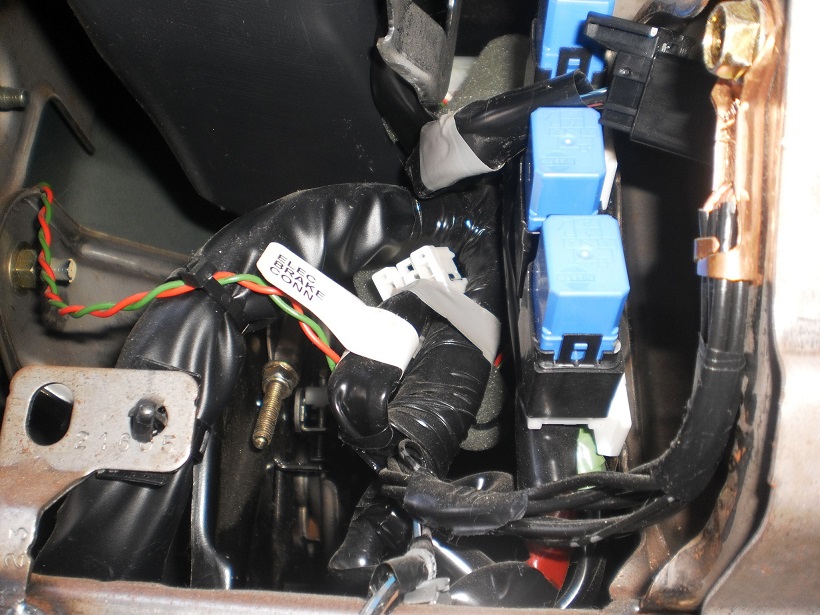

The connector is taped to a wire harness to the left of the steering column. The easy way to get to it is to remove the plastic trim below the steering column. There are two phillip head screws at the bottom. Remove those and the panel will then snap off. You can then get to the connector.

Then it is just a matter of connecting the harness up to your brake controller, according to the wires functions using butt connectors, and then plug it in. Mount the controller where your want it. I prefer to have it on the right side of the steering wheel, within reach of my right hand. Just screw the bracket right into the plastic dash panel (I know, it hurts!) I do stock factory custom made harnesses that will plug the Prodigy Brake Controller directly into the Nissan.

You MAY need to install the relays for your trailer brakes. You will have to look in you owners manual to find the size and location, and any relay you may need to install. Sorry, they are all different.
